Description
Beauty is more than skin deep: the Aim’s sleek looks are thanks to its Smooth Welded head tube and seat tube junctions. It incorporates a threaded bottom bracket and internal cable routing for long-lasting service and simple maintenance. There’s even a flat disc mount that integrates seamlessly with our kickstand mount, and integrated mounting points for ACID mudguards and carrier. Updated geometry includes a lower top tube for more confident handling, and there’s plenty of room to run wide, grippy and comfortable 2.25in tyres. Their SizeSplit system has an expanded range, too, so however tall you are there’ll be an Aim that fits perfectly
Specifications:
- Frame: Aluminium Lite, AMF, Double Butted, Internal Cable Routing, Tapered Head Tube, Flat Mount Brake, SIC Mount, FM Kickstand Mount
- Fork: SR Suntour XCT, 100mm
Groupet:
- Brake System: Tektro HD-M275 / TKD-150, Hydr. Disc Brake (160/160)
- Rear Derailleur: Shimano RD-M360, 8-Speed
- Front Derailleur: Shimano FD-M315, Top Swing, 31.8mm Clamp
- Shifters: Shimano SL-M315, Rapidfire-Plus
- Bottom Bracket: Feimin FP-B902N, 73mm BSA
- Crankset: Shimano FC-M315, 36x22T
- Cassette: Shimano CS-HG31, 11-34T
- Chain: KMC Z8.3
Wheels:
- Front Hub: CUBE Alloy Light, QR, 6-Bolt
- Rear Hub: CUBE Alloy Light, QR, 6-Bolt
- Rims: CUBE ZX20, 32H, Disc
- Tyres: CUBE IMPAC Smartpac, 2.25
Finishing Kit:
- Stem: CUBE Performance Stem Pro, 31.8mm
- Handlebars: CUBE Rise Trail Bar, 680mm

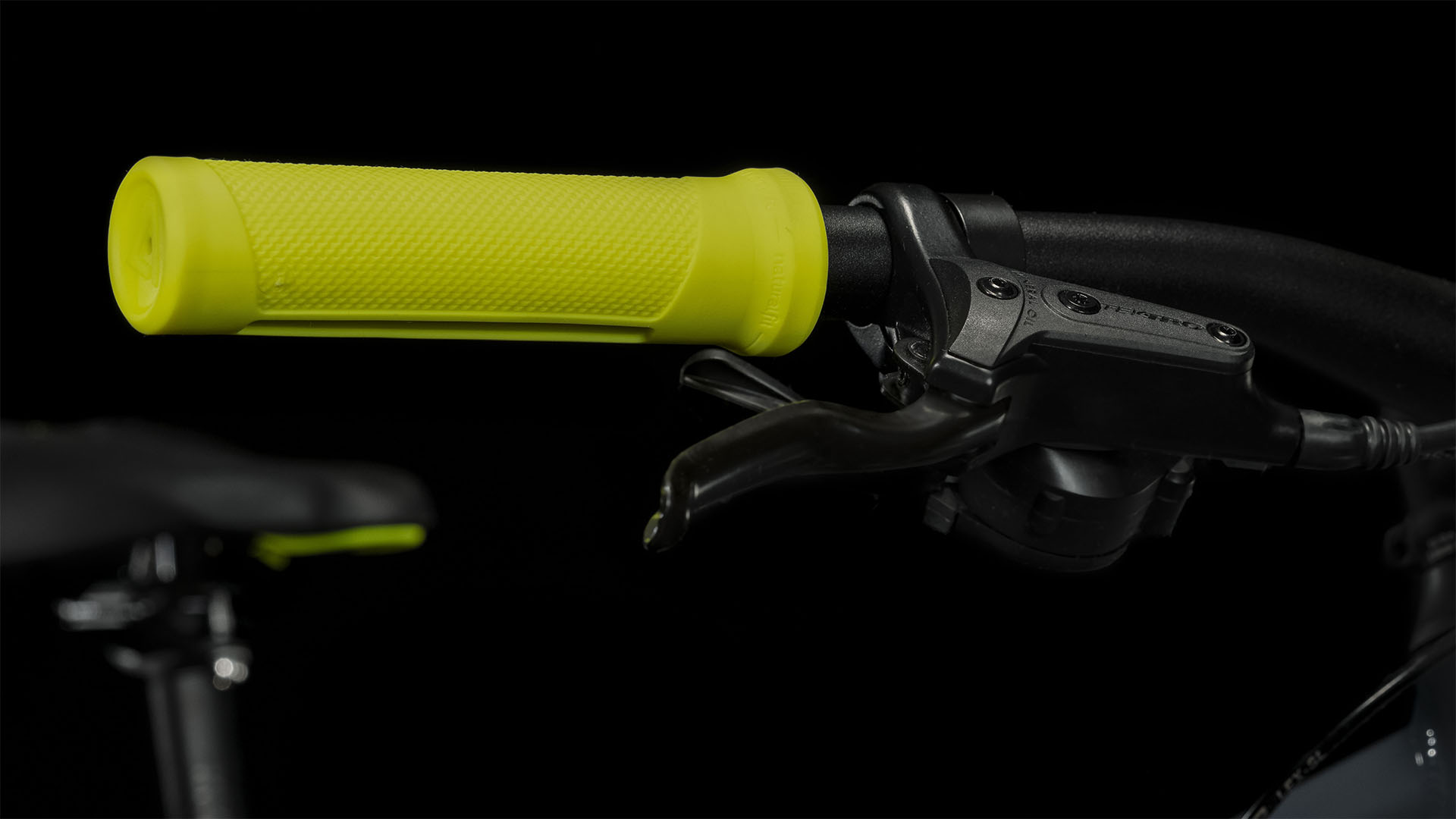

- Grips: ACID React
- Seat Post: CUBE Performance Post, 27.2mm
- Seatclamp: CUBE Varioclose, 31.8mm
- Saddle: Natural Fit Venec Lite
- Headset: CUBE FPH868, Top 1 1/8″, Bottom 1 1/2″, Semi-Integrated
- Pedals: CUBE PP MTB
- Weight: 14,7 kg
- Colour: Grey´n´Flashyellow
