Description
We say…

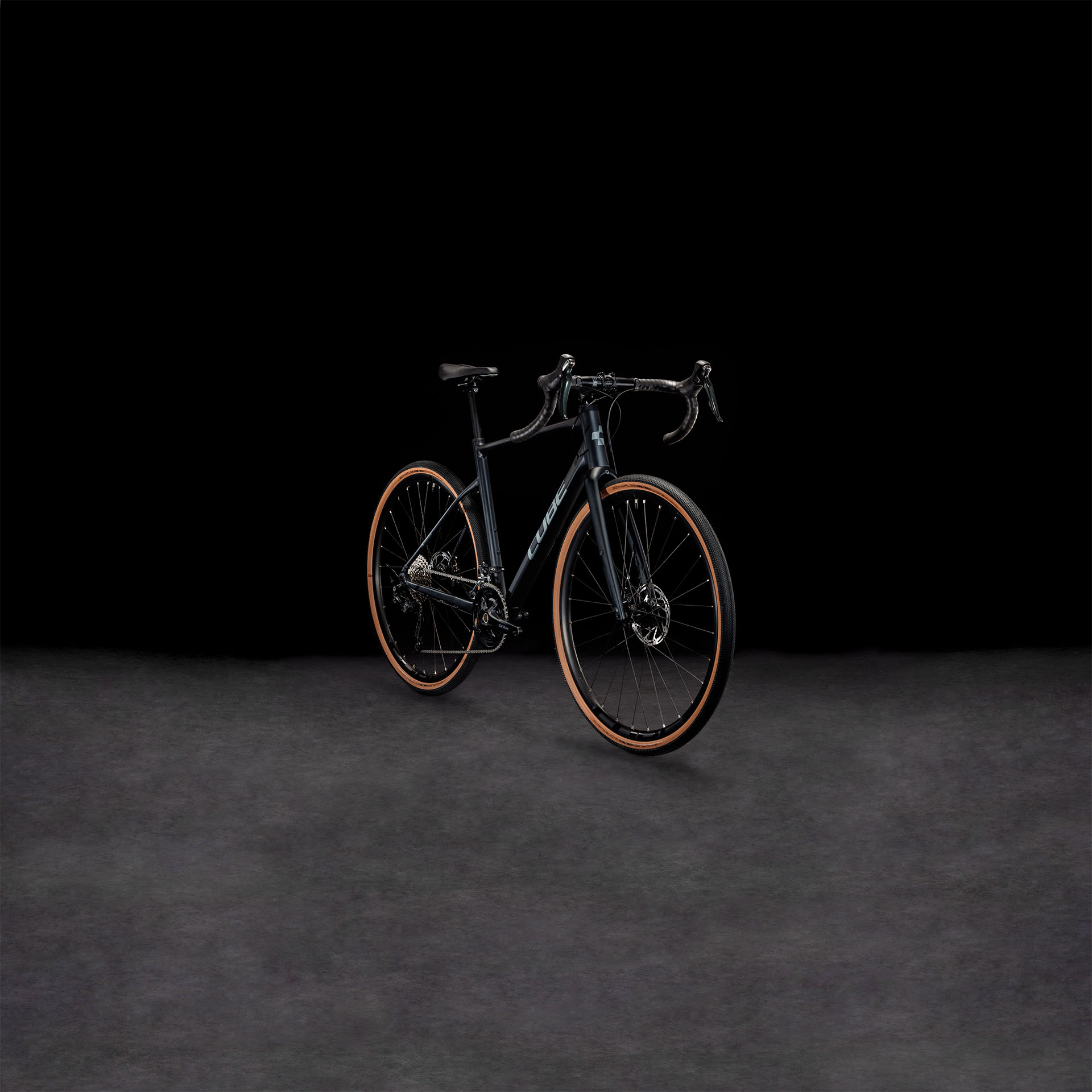

The Cube Nuroad is the mainstay gravel bike in the lineup. It’s great value, easy to maintain, and is the perfect gravel bike to dip your toe…
They say…
To create the Cube Nuroad Pro we took inspiration from our race and cyclocross bikes, then threw a little mountain bike DNA into the mix. There’s plenty of clearance for big, grippy and comfortable 45mm tyres – or 40mm if you run mudguards at the same time. There’s an integrated seat clamp, exceptionally tidy rack, guard and kickstand mounts, and neat internal cable routing to keep gear shifts grit- and mud-free for longer. Thru-axle wheels improve steering accuracy, even on the roughest roads. And the full carbon fork isn’t just lightweight – it also helps reduce vibration from the road and features lowrider rack mounts.
Your bike shouldn’t limit you. That’s why we built the Nuroad Pro: to help you go further. With ample clearance for its wide, grippy Schwalbe tyres, it has the ability to keep going where other bikes have long since turned back. Shimano’s reliable GRX and Tiagra 2×10 gears put the right ratio for any road at your fingertips. Powerful, durable mechanical disc brakes ensure you’ve always plenty of stopping power in reserve. And the comfortable carbon fork helps reduce vibration, so you can ride for longer in comfort. With its mudguard-, rack- and kickstand-ready frame, the only thing missing is your spirit of adventure.
COMPONENTS:
FRAME: Aluminium 6061 T6 Superlite, Gravel Comfort Geometry, Flat Mount Disc, Fender & Rack Option, 12x142mm, AXH
SIZE: XS (50cm), S (53cm), M (56cm), L (58cm), XL (61cm)
RIGID FORK: CUBE Nuroad Flat Mount Disc, Full Carbon, 1 1/8″ – 1 1/4″ Tapered, Fender & Lowrider Mounts, 12x100mm
BRAKE SYSTEM: TRP Spyre MD-C610C, Flat Mount (160/160)
REAR DERAILLEUR: Shimano GRX RD-RX400, 10-Speed
FRONT DERAILLEUR: Shimano GRX FD-RX400
SHIFT/ BRAKE LEVERS: Shimano Tiagra ST-4700
CRANKSET: Shimano GRX FC-RX600, 46x30T
CASSETTE: Shimano CS-HG50, 11-36T
CHAIN: KMC X10
HANDLEBAR: CUBE Gravel Race Bar
STEM: CUBE Performance Stem SLX, 31.8mm
HANDLEBAR TAPE: ACID Bartape CX
HEADSET: VP Z-t, Top Zero-Stack 1 1/8″ (OD 44mm), Bottom Integrated 1 1/4″
WHEELSET: CUBE GR 2.3 Disc
TYRES: Schwalbe G-One Allround, Kevlar, 40-622
SADDLE: Natural Fit Venec Lite
SEAT POST: CUBE Performance Post, 27.2mm
WEIGHT: 10,4 kg
COLOUR: metalblack´n´grey
ART. NO: 680100
Geometry
| Â | 50 cm / XS | 53 cm / S | 56 cm / M | 58 cm / L | 61 cm / XL |
|---|---|---|---|---|---|
| Seat tube | 447 | 477 | 507 | 527 | 557 |
| Top Tube Horizontal | 518 | 537 | 560 | 575 | 592 |
| Seat angle | 75.8° | 74.7° | 73.8° | 73° | 73° |
| Head tube angle | 69° | 70° | 71.4° | 72° | 72.5° |
| Chainstays | 440 | 440 | 440 | 440 | 440 |
| Head tube | 113 | 135 | 165 | 185 | 208 |
| Wheelbase | 1044 | 1045 | 1044 | 1046 | 1058 |
| BB-Height to Hub | 70 | 70 | 70 | 70 | 70 |
| Protrusion height – 80mm | 749 | 776 | 808 | 828 | 855 |
| Reach | 384 | 386 | 389 | 389 | 398 |
| Stack | 530 | 554 | 588 | 610 | 633 |
ERGONOMICS
| Â | 50 cm / XS | 53 cm / S | 56 cm / M | 58 cm / L | 61 cm / XL |
|---|---|---|---|---|---|
| Length seat post | 350 | 350 | 350 | 350 | 350 |
| Diameter seatpost | 27.2 | 27.2 | 27.2 | 27.2 | 27.2 |
| Angle stem | -6° | -6° | -6° | -6° | -6° |
| Crank length | 170 | 170 | 172.5 | 172.5 | 175 |
| Diameter tire maximum | 721 | 721 | 721 | 721 | 721 |
| Width tire maximum | 45 | 45 | 45 | 45 | 45 |
| Stem length | 80 | 80 | 90 | 100 | 100 |
| Handlebar width | 400 | 420 | 440 | 460 | 460 |
All values are given in millimetres or degrees.
